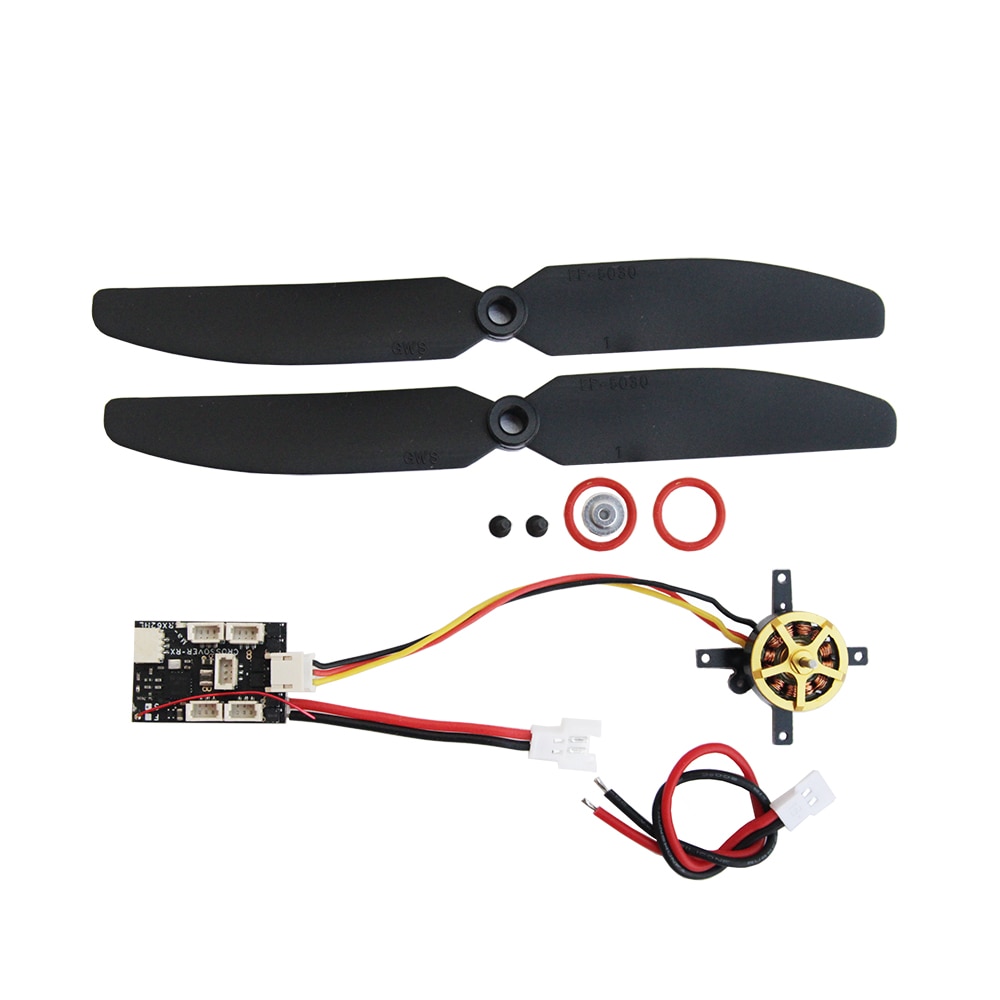

MP05 brushless motor 1304 with RX62HE-A2 FlySky 2A receiver indoor airplanes and drones 120g thrust on 2S mount
Description(MP05 motor)
Weight: 5.4g including cables
size:1304
KV: 4000
Plug: 1.5mm JST 3P
Thrust is 120g-150g with GWS5030mm prop at 2S
Idle current: 0.27A/7.4V 0.18A/3.7V
All the motors on the list will comes with a motor mount for free like the following:
Description for RX62HE-A2 FlySky AFHDS 2A receiver with 2S ESC:
Ma-RX62HE-X series receivers were developed upon Ma-RX42E-X series receivers with a built-in 7A/2S(5A/3S) brushless ESC and 6 independent servo ports on board in this case RX62HE-X receiver can provide more power and more channels to work on larger size or more complicated model planes. We can supply 8 versions in total with TELEM function.
Protocol: FlySky AFHDS 2A
Specification：
Super small size：24.0*16.0*6.5mm(not including antenna)； Super light)：1.85g(not including power cables and motor connectors) ； Working voltage):7.4~11.1V； Comes with a built-in 7A/2S or 5A/3S brushless ESC； Built-in DCDC buck circuit(2.2A/3.9V) Supports double-aileron mode(reversed) Optimized binding process(DSMX/2) Auto binding; Supports TELEM function(only advanced version) 1.0mm 3P servo connectors;Ports
Double-aileron mode：
Double-aileron mode is developed for those model airplanes using double ailerons. This function can simplify servo wiring connection and transmitter set up. Default is double-aileron mode you can turn off double-aileron mode by short connect P ports on the above picture then AIL2 will be set as AUX2 output.
Auto Binding：
As it is difficult to reach the binding button when the receiver has been installed inside the plane we developed self-binding function it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing) then complete the binding operation according to your transmitter binding manual.
TELEM Function
TELEM function is useful on monitoring battery voltage receiver working voltage and its signal strength as well as its working temperature in real time through which customer can get working state of receiver and battery discharging state under control so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring customer needs to choose a more advanced receiver) NOTE: The effective control range of TELEM function depends on transmitter it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range it is normal and alright!
The above weight was added 3 pcs of 2.2g digital servo
"
