FPV Wireless Head Tracker Module Tracking Sensor with Transmitter Receiver for RC Car Aircraft First Perspective Control

Specification:

– Item name:head tracker module

– Transmitter air control distance:?E?E00m

– Transmitter ground control distance:?E?E00m

– Transmitter built-in power:3.7V 300mAh

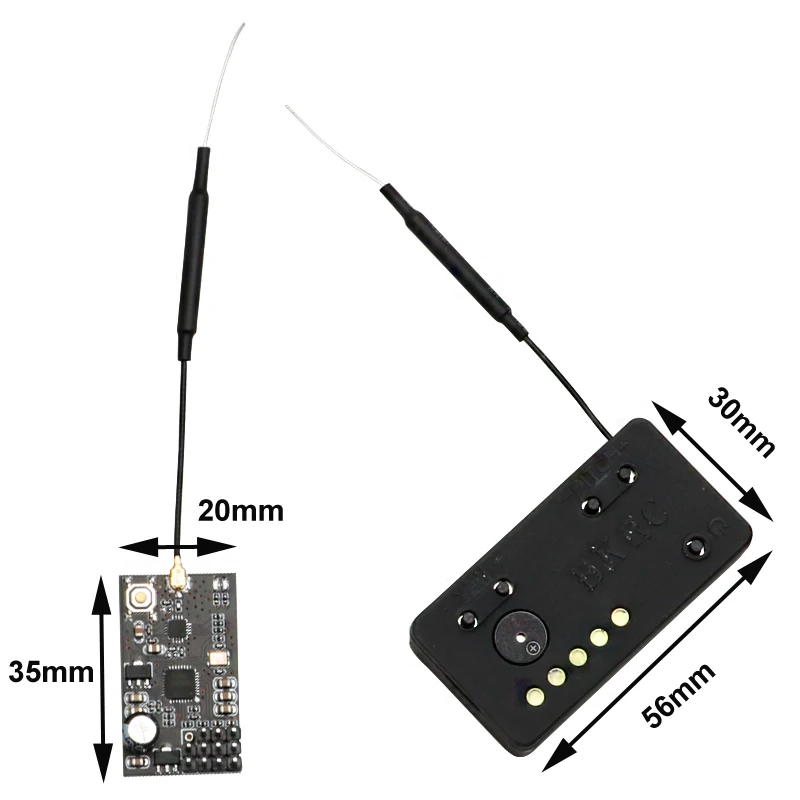

– Transmitter size:56mm x 30mm x 15mm

– Receiver size:35mm x 20mm

– Receiver input voltage:DC 5V

– Used for FPV drone rc airplane

Feature:

– Adopt independent RC wireless communication

– High-precision sensor is adopted with accurate action collection and low drift

– Adopt independent RF remote communication technology

– The transmitter does not need wiring and does not occupy the remote control channel.



Usage:

1.Power on/off Transmitter:

Short press the "on/off button" once and then long press the "on/off button".

2.Binding:

– Step 1. Power off the transmitter and receiver

– Step 2. Long press and hold on the "binding button" of the receiver and at the same time power on the receiver by connecting the battery to it.

Blue light flashes fast – binding starts.

– Step 3: Long press and hold the "PITCH+ button" on the transmitter at the same time short press once and then long press the "ON/OFF button".

There is a beep sound which means that the binding is successful.

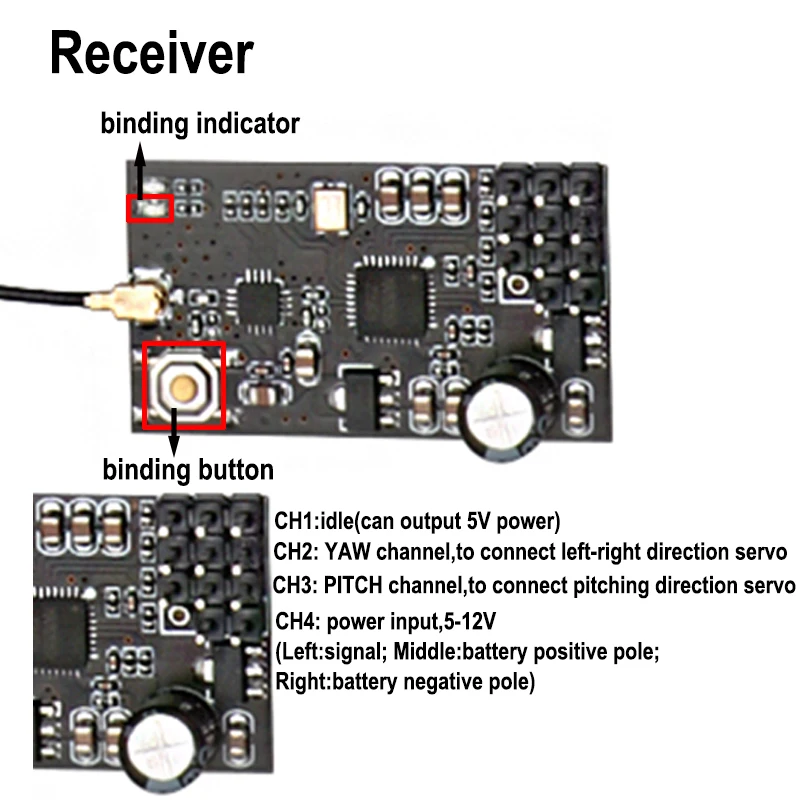

3.Receiver Wire Connection:

– CH1: idle(can output 5V power)

– CH2: YAW channel to connect left-right direction servo

– CH3: PITCH channel to connect pitching direction servo

– CH4: power input 5-12V(Left:signal; Middle:battery positive pole; Right:battery negative pole)

– The yellow signal cable of the servo connected to the CH2 and CH3 need to plug into the left side.

4.Gimbal Back to Center:

To double press the "ON/OFF button" then it will make a beep sound.

5.Reverse Servo Direction:

– Left-right direction: long press and hold the "YAW+ button" and "YAW- button" on the transmitter till it emits a beep sound.

– Pitching direction: long press and hold the "PITCH+ button" and "PITCH- button" on the transmitter till it emits a beep sound.

6.Calibration and fine adjusting:

– Short press the "ON/OFF button" twice and there will be 3 beep sound and the gimble will be reset and it will be back to the middle point.

– To fine adjust the servo:

Long press the "ON/OFF button" and it emits 3 beep sound and then press "+" or "-" of YAW and PITCH botton to do fine adjusting of the servo.

Long press the "ON/OFF button" to quit the setting mode.

7.Adjust the Rudder Quantity

Press the corresponding "+" "-" button of servo.

Note:

1.The gimbal and others will not include.

2.Due to manual measurement the size may have slightly deviation.

Package include:

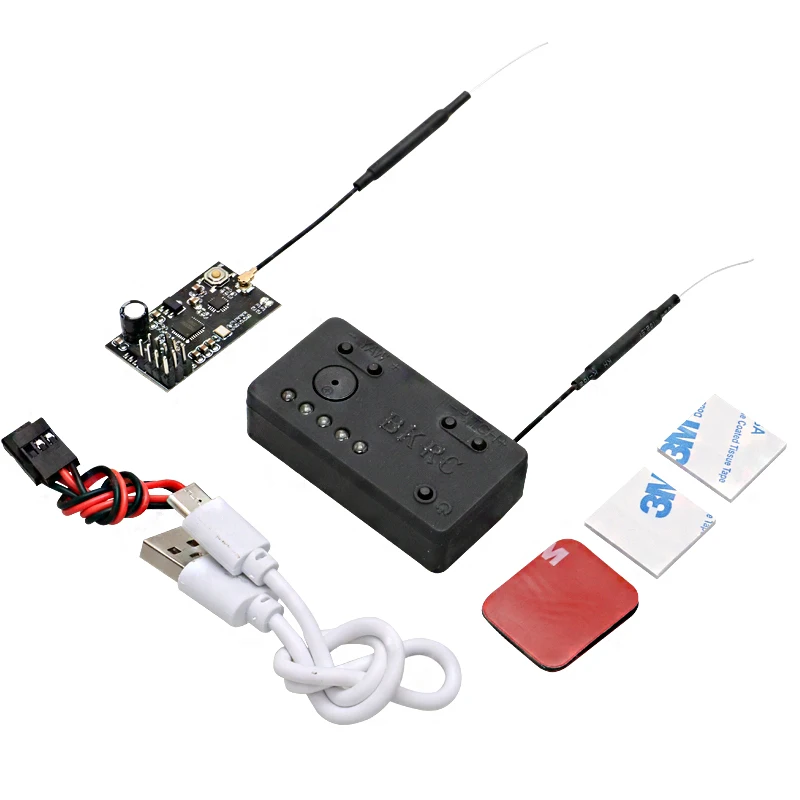

1set x head tracker kits no shell

or

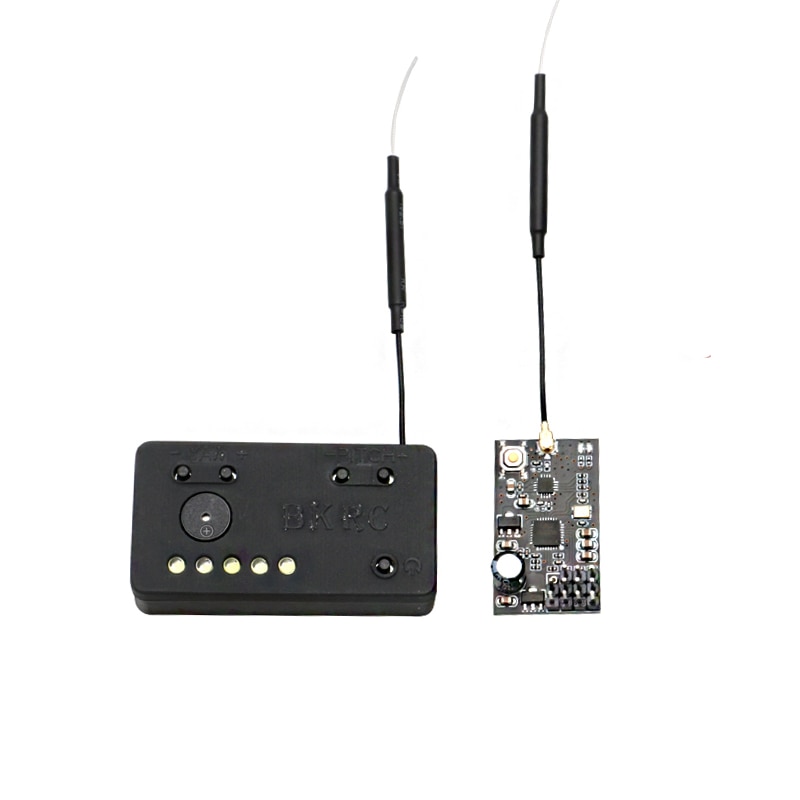

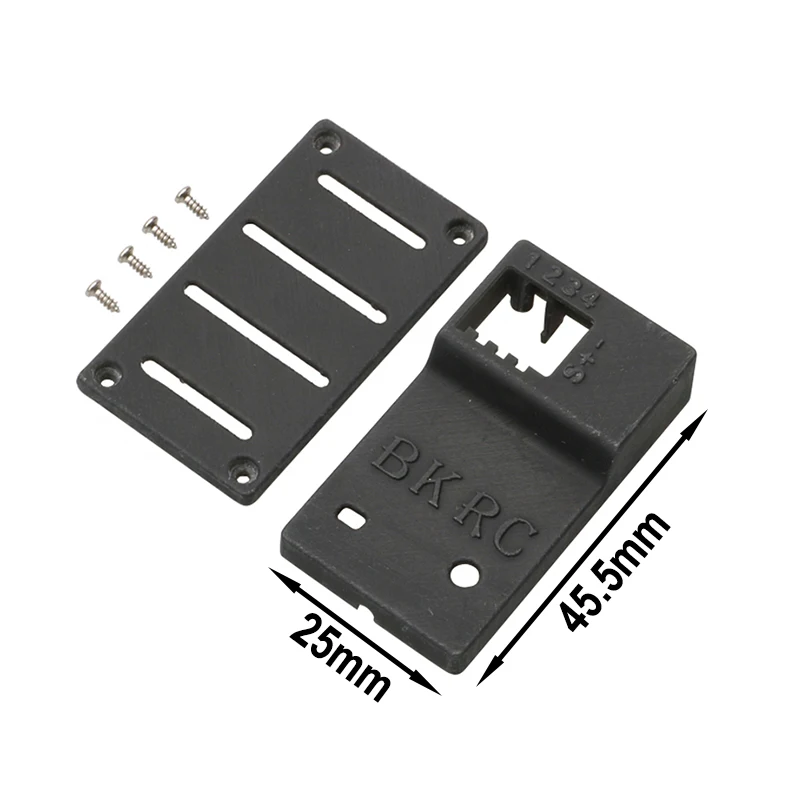

1set x head tracker kits with shell



"
