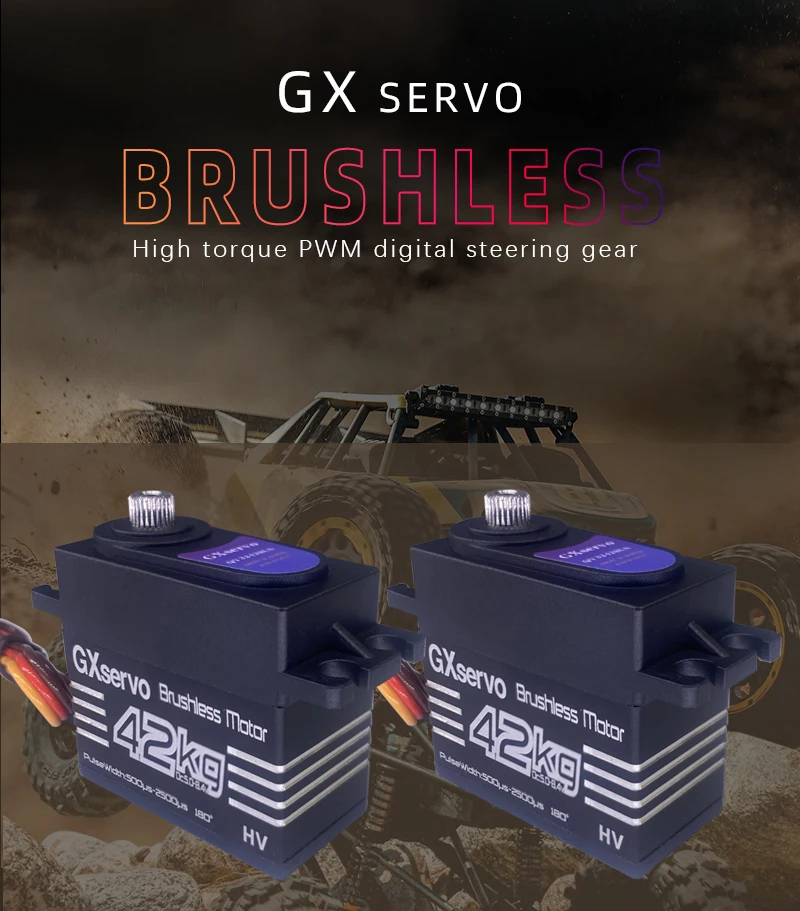

GXservo Rc car Brushless digital servo 42kg Waterproof High torque Remote Trol Car For Robotic Boat 1/8 1/10 Scale

GXservo Rc car Brushless digital servo 42kg Waterproof High torque Remote Trol Car For Robotic Boat 1/8 1/10 Scale

GXservo 42KG Brushless Motor 90/120/180/270/358/360 Degree Metal Gear Digital Servo For Rc Car Crawler

1:8/1:10 Rc Car Truck Robot Parts

Specifications:

Model: QY3242BLS

Item Name: QY3242BLS Brushless Servo

Rotation angle:180 degree There are more angles to comment on

Dead Band: 2μsec

Operating Voltage: 5.0V~8.4V

Operating Speed (6V): 0.118sec / 60° at no load

Operating Speed (7.4V): 0.092sec / 60° at no load

Operating Speed (8.4V): 0.085sec / 60° at no load

Stall Torque (6.0V): 30 kg/cm

Stall Torque (7.4V): 38 kg/cm

Stall Torque (8.4V): 42kg/cm

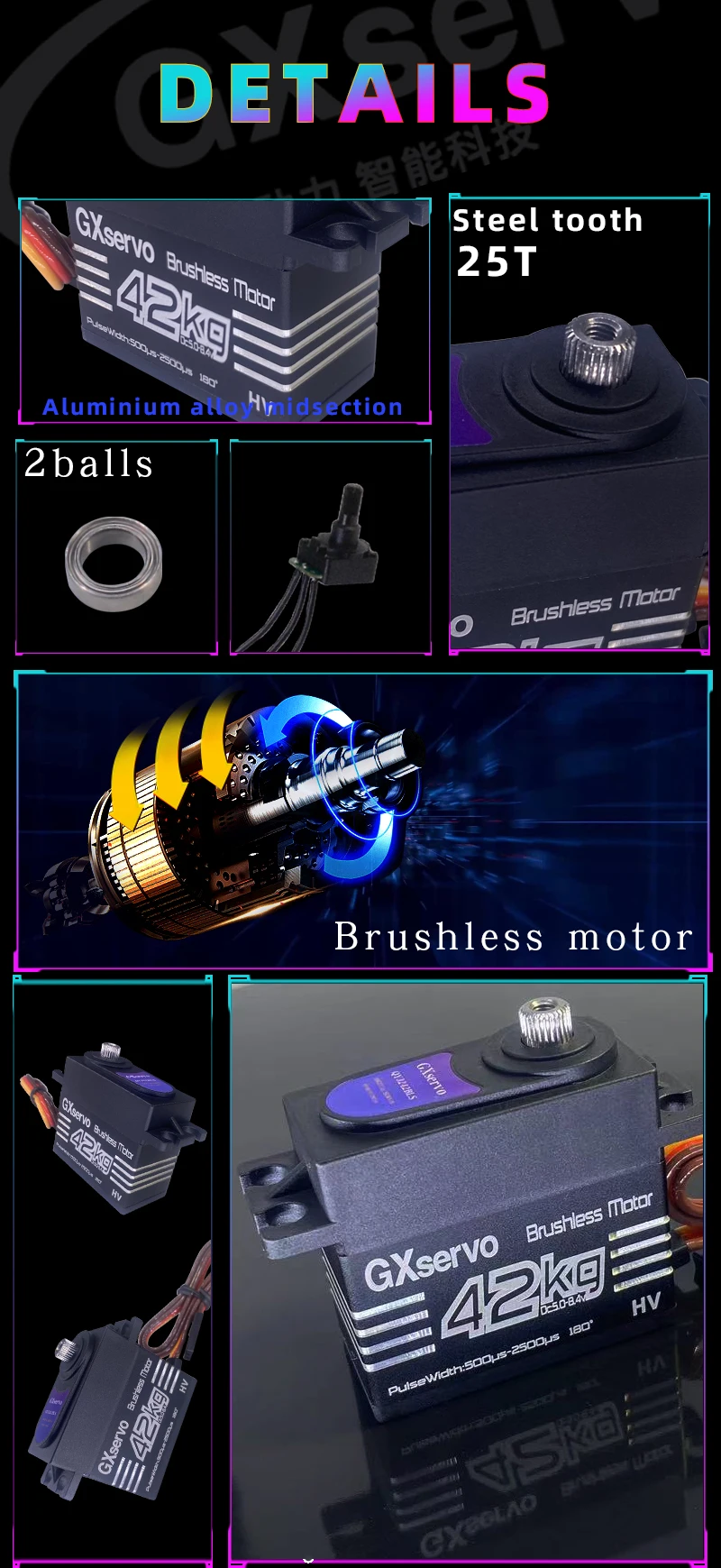

Motor Type: Brushless Motor

Gear Type: Copper & Aluminum

Working Frequency: 1520μs / 333hz

CE Certification: Yes

Size: 40 * 20 * 37mm

Weight: 69g

Packing list:

1 x QY3242BLS 42KG Large Torque Digital Servo

Note:

The color deviation is subject to actual system configuration and 1-3cm slight dimension difference is

allowed due to manual measurement. Please refer to the size chart based on your actual figure.

"
